Birthday candle drawing machines MKZA used for producing birthday and Christmas tree candles

The non-stop operating candle drawing machines can produce candle strands made of paraffin compositions.

The non-stop operating drawing machine draws an endless wick cord in circuits, always alternating through a liquid paraffin curtain, a shape bore, and in conclusion through a water vat for cooling. A candle strand is created circuit by circuit with a growing diameter.

Upon completion, the strand is cut to the desired length and transported to the candle milling machine (on the left in the picture) for head and base milling.

  • Candle sizes: Ø 5 – 13 mm / 50 to 115 mm length
  • Capacity: up to 20,000 candles per hour

Options:

  • Air cooling for paraffin compositions that are difficult to process , beeswax, and also high demands on the surface quality
  • Color-overdipping machine
  • Packaging machine and packaging robot
  • Double-strand processing

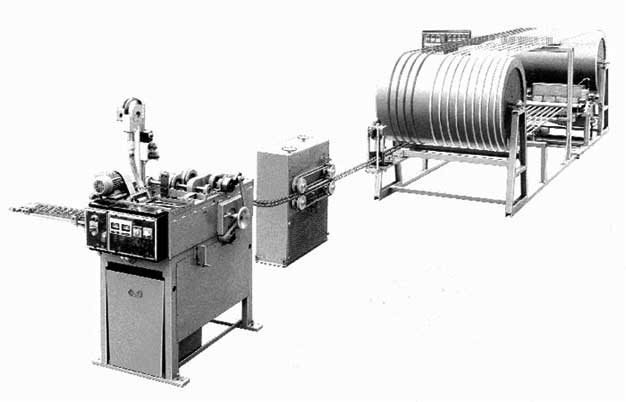

Miniature candle drawing plant MKZA
Miniature candle drawing plant MKZA

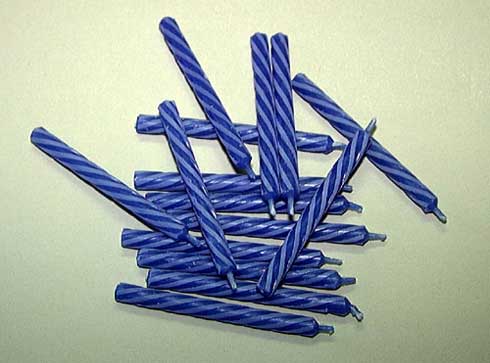

Birthday candles
Birthday candles
