Milling machine for household candles

For milling cylindrical candle strands

The cut candle strands are fed in cycles into the chain transport system. Clamping and centring prisms hold the candles while their head and base are milled simultaneously. After the milling, the candles are put out of the machine by means of the transport chain and are fed into the colour dipping or / and packing machine.

Number of miller pairs for simultaneous milling of candle base and head:

  • 2
  • 3
  • 5
  • 6
  • 12

Candle diameter: 10 – 30 mm
Candle length: 80 – 400 mm

Output: 3,000 – 25,000 pcs / h

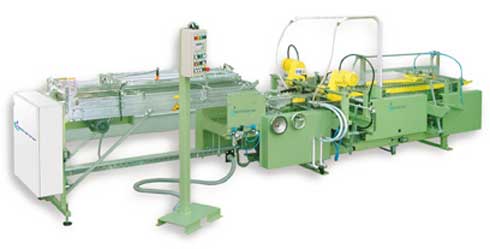

Milling machine KKF for household candles
Milling machine KKF for household candles

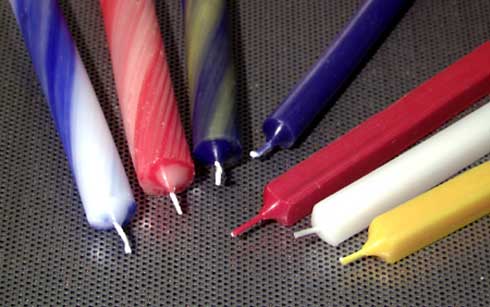

milled candles
milled candles
